Apparatus Details

  Small Parts
Part Number
Balls (" diameter):
  • Nylon (1.2 g)
  • Aluminum (3.0 g)
  • Aluminum Oxide (4.1 g)
  • Steel (8.5 g)
  • Brass (9.2 g)
    Teflon (2.1 g) not used
    Tungston carbide (16.1 g) not used
  • Y-BN-8
  • Y-BA-8
  • Y-BAO-8
  • Y-BX-8
  • Y-BBR-8
    Y-BT-8
    Y-BTC-8
Springs:

  • Beryllium Copper 0.02" wire diameter
    0.35" outer diameter, 2" free length
  • Y-CS-45
 Track:

  • Oak
    Homemade, using router, saw, drill, & wood screws. Launcher made from " dowels, washers, and wood screws (see enlarged view).

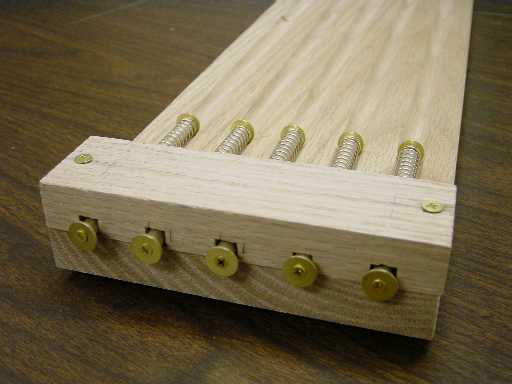

End View
