Time-of-Flight
Mass Spectrometry



Demo using Balls and Springs

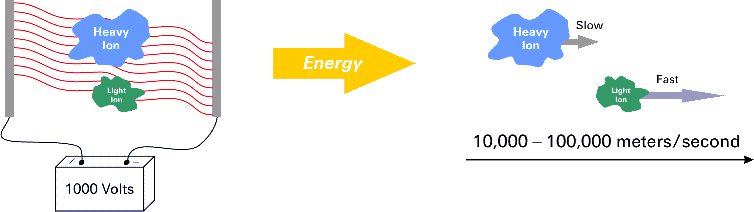

Acceleration of ions

Electric field gives
each ion the same
kinetic energy.

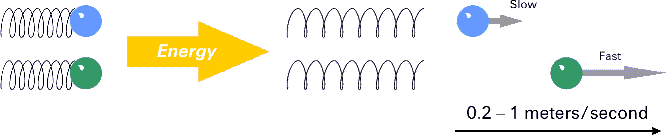

Acceleration of balls

Uniform spring
compression gives
each ball the
same kinetic energy.



In this case the blue ball weighs more than the green one.

More info

The ions (or balls) all have the same energy (E),
and since

E = mv2

the lighter ones (lower m) go faster (higher v)
than the heavier ones (higher m)!



Physical Demonstration

Click on any photo to see full-size version.

See the movies!
Five-second
MPEG files.

Full

Panned

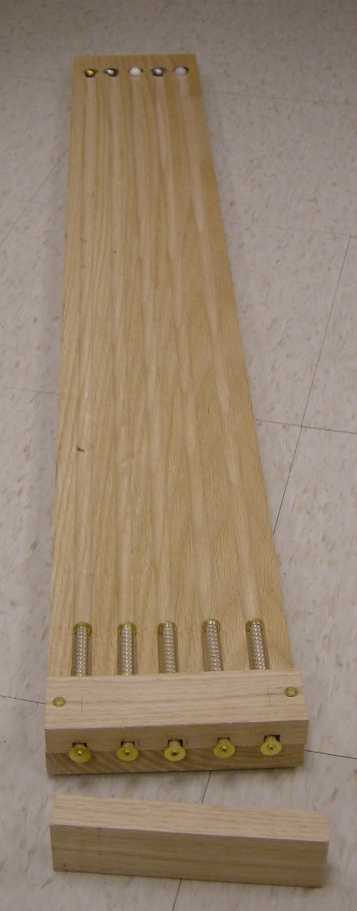

Complete apparatus.

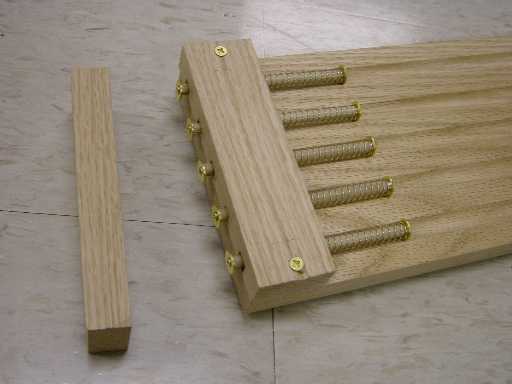

Track and springs
before loading.

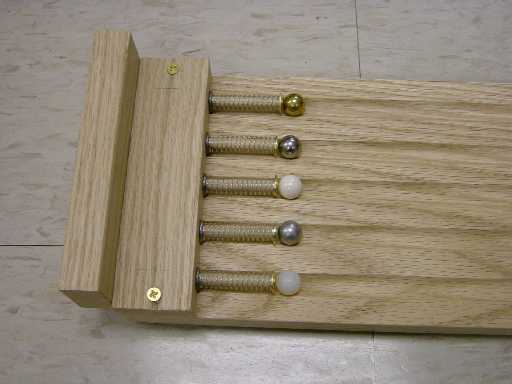

Balls loaded
into position.

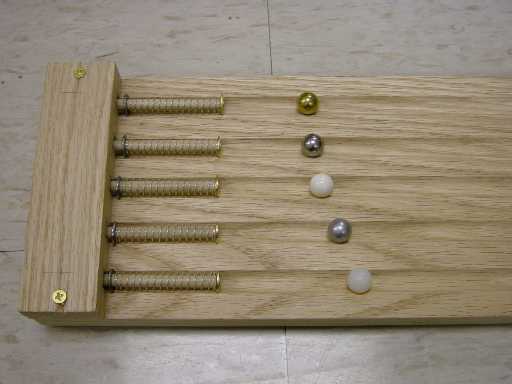

Just after release.
(Simulated motion.)

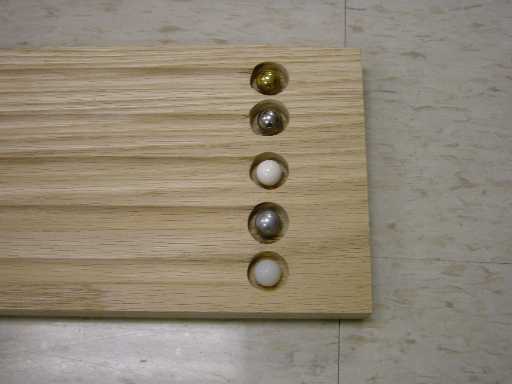

End of track.


Interested in building your own model?
See here.
